model:jx-20
brand:jingxin
specifications :set

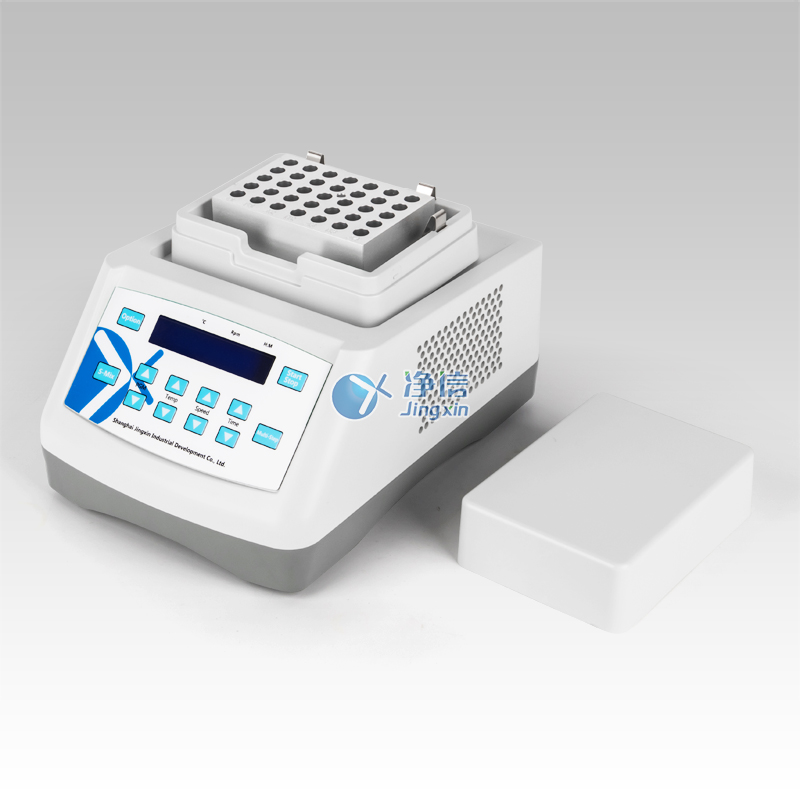

introduction:jx-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. it uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device.
product description:
jx-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. it uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device. it has exquisite appearance, convenient use, high precision, and small size. , features such as large temperature control range.
using high-quality semiconductor refrigeration film and switching power supply module to ensure long-term stable and reliable operation. it can be widely used in sample preservation and reaction, dna amplification and electrophoresis pre-denaturation, serum coagulation, etc.
features:
◆real-time temperature display, time countdown display;
◆automatic fault detection and buzzer alarm function;
◆temperature deviation calibration function;
◆built-in over-temperature protection device;
◆convenient module replacement, easy to clean and disinfect;
◆exquisite appearance, blue lcd display real-time parameter information;
◆temperature deviation calibration function, optional power-off automatic recovery function, automatic operation function after power-on, improve work efficiency;
◆intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the whole range, effectively reducing the experimental error;
◆multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with ce standards;
◆support module classification custom calibration function;
technical parameter:
main parameters | parameter range |
temperature setting range | 0℃~100℃ |
temperature control range | 30℃~100℃ below room temperature |
time setting | 1min~99h59min/∞ |
temperature control accuracy | ≤±0.3℃* |
display accuracy | 0.1℃ |
temperature uniformity | ≤±0.3℃* |
heating time | ≤10 minutes(25℃-100℃)* |
cooling time 1 | ≤10 minutes(100℃- 25℃)* |
cooling time 2 | (room temperature drops to 30℃ below room temperature)* |
store at 4℃ after running | support |
multi-point operation | support (5 points) |
multi-point loop operation | support (can be cycled 99 times) |
automatic preheating | support |
automatically run on startup | support |
automatic recovery after power failure | support |
sample capacity | see module selection table |
input power | 150w |
voltage | ac110~220v/50-60hz |
fuse | 250v 3a ф5×20 |
dimensions(mm) | 260x195x150 mm |
weight | 4.5kg |

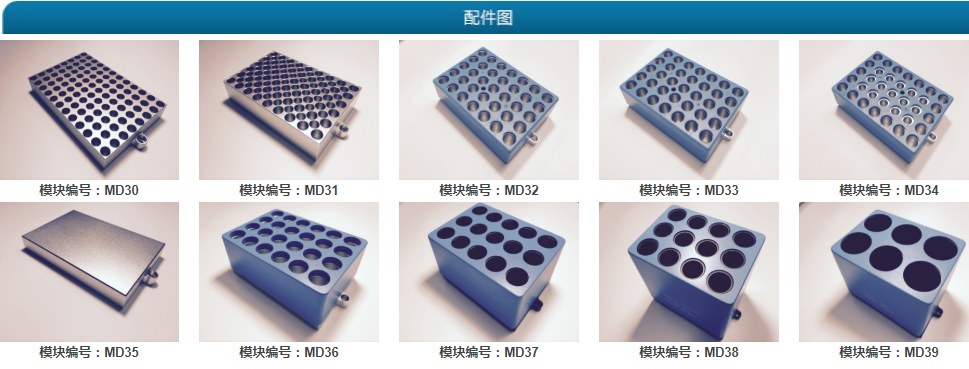

optional modules:
model | test tube diameter | test tube number |
md30 | 0.2ml ((standard plate) | 96 |
md31 | 0.5ml (centrifuge tube) | 54 |
md32 | 1.5ml (centrifuge tube) | 35 |
md33 | 2.0ml (centrifuge tube) | 35 |
md34 | 0.5ml 1.5ml (centrifuge tube) | 15 20 |
md35 | 0.2ml (enzyme plate) | 96 |
md36 | 5ml | 24 |
md37 | 10ml | 15 |
md38 | 15ml | 12 |
md39 | 50ml | 6 |
customized module | sample tube specifications provided by the customer | —— |
optional accessories:
