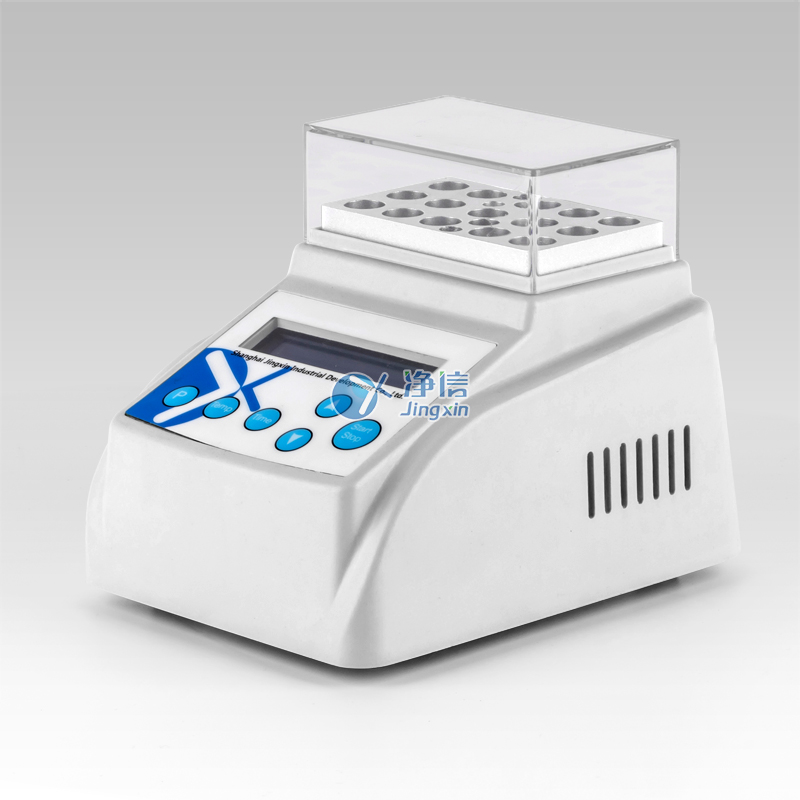

model：jxmini-c
brand：jingxin
specifications ：set
introduction：jxmini-80/jxmini-c is a mini-type dry thermostat that uses pid fuzzy control technology. it is small in size, light in weight, and has high temperature control accuracy.
product introduction:
jxmini-80/jxmini-c is a mini-type dry thermostat that uses pid fuzzy control technology. it is small in size, light in weight, and has high temperature control accuracy. it can be widely used in sample preservation and reaction, dna amplification and electrophoresis. predenaturation, serum coagulation, etc. it is suitable for any occasions with 100-240v power supply, such as on cars and ships.
features:
1. small size and flexible movement
2. a variety of specification modules are available to meet the needs of different test tubes
3. portable, suitable for 12v power adapter
4. the intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the full range, effectively reducing the experimental error
5. optional power-off auto-recovery function, automatic start-up function, improve work efficiency
6. each instrument is equipped with a module handle, even in a high temperature state, the module can be replaced safely and quickly
7. the transparent insulation cover is convenient for users to observe the whole process of the experiment through perspective
8. multiple safety protections ensure long-term operation stability and safety under unattended conditions, comply with ce standards, and are safe and reliable.
product parameters:
main parameters | parameter range | |
model | jxmini-80 | jxmini-c |
temperature setting range | room temperature 5℃～100℃ | below room temperature15℃～100℃ |
temperature control accuracy | ≤±0.3℃ | |
time setting range | 1sec～99h59min/∞ | |
module temperature uniformity | ≤±0.3℃ | |
display accuracy | 0.1℃ | |
temperature stability | ±0.3℃ | |
heating rate | ≤20min（from 40℃~100℃） | ≤20min（from 25℃~100℃） |
cooling time 1 | -- | ≤20 minutes （100℃ to 25℃） |
cooling time 2 | -- | ≤25 minutes (room temperature drops to 15°c below room temperature) |
store at 4℃ after running | -- | support |
multi-point operation | -- | support (maximum 5 points) |
multi-point loop operation | -- | support (maximum number of cycles 99) |
automatic preheating | -- | support |
automatically run on startup | support | |
automatic recovery after power failure | support | |
sample size | see product accessories for details | |
dimensions | 5×113×110mm | 145×113×140mm |
maximum power | 40w | 60w |
voltage | ac100~240v / 50~60hz | |
weight | 0.5kg | 1kg |
optional modules:
optional modules | number of test tubes and aperture | number of holes |
minibox a | 15×2.0ml (centrifuge tube) | standard centrifuge tube |
minibox b | 15×1.5ml (centrifuge tube) | standard centrifuge tube |
minibox c | 24×0.5ml (centrifuge tube) | standard centrifuge tube |
minibox d | 32×0.2ml (centrifuge tube) | standard 0.2ml pcr tube |
minibox f | 32×0.2ml (centrifuge tube) | standard 0.2ml enzyme label strip |
custom modules | provided by customers |
