model：jxdc-20
brand：jingxin
specifications ：set
introduction：jxdc-20 it has the characteristics of convenient use, large temperature control range, and high precision.
product description:

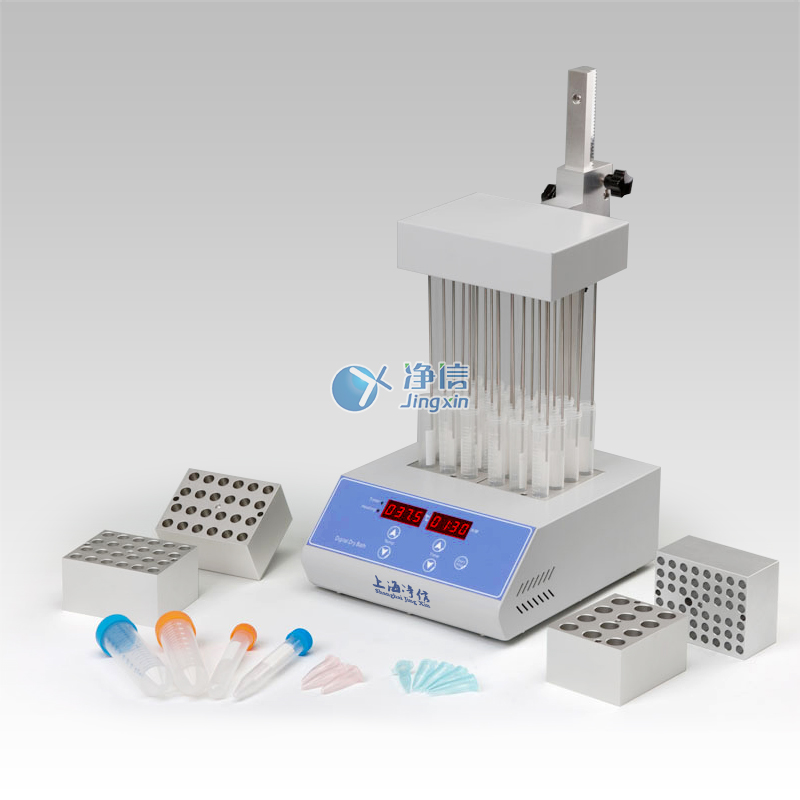

jxdc-20 nitrogen purging instrument adopts microcomputer and pid fuzzy control technology, and uses high-purity aluminum material as the heat transfer medium to replace the traditional water bath device. it has the characteristics of convenient use, large temperature control range, and high precision. its working principle is to blow nitrogen or air to the surface of the heated sample quickly, continuously and controllably, and set the heating temperature according to the evaporation speed and boiling point of the concentrated solvent to achieve rapid concentration of a large number of samples.
features:
◆ the blowpipes are independent of each other and will not cause cross-contamination;
◆ each air needle channel can be used in combination or alone;
◆ the system has high temperature control accuracy, wide temperature control range, temperature numerical control display, and temperature calibration is convenient;
◆ the product has beautiful appearance, simple operation, safe and reliable use;
:
the main parameters | parameter range |
temperature range | room temperature 5℃~150℃ |
temperature control | ≤±0.5℃ |
temperature uniformity | ≤±0.5℃ |
@100℃temperature stability@100℃ | ≤±0.5℃ |
heating time (40℃-150℃) | ≤30min |
gas pressure | 0.05mpa |
air needle length | 150mm |
air needle length | 250v 3a φ5×20 |
dimensions | 230x225x450（mm) |
timing | 99 hours and 59 minutes long |
display accuracy | 0.1℃ |
@150℃temperature stability@150℃ | ≤±1℃ |
lifting stroke | 200mm |
gas flow | 15l/min |
number of modules | 2个 |
power | 400w |
weight | 7.5kg |
optional accessories:
model | test tube diameter | test tube number |
md03 | 10mm（47mm）hole depth | 24 |
md04 | 12mm（47mm）hole depth | 24 |
md05 | 13mm（47mm）hole depth | 24 |
md06 | 15mm（47mm）hole depth | 16 |
md07 | 16mm（47mm）hole depth | 16 |
md08 | 19mm（47mm）hole depth | 12 |
md09 | 20mm（47mm）hole depth | 12 |
md10 | 26mm（47mm）hole depth | 8 |
md11 | 28mm（47mm）hole depth | 4 |
md12 | 40mm（47mm）hole depth | 3 |
md15 | 1.5ml centrifuge tube | 24 |
md16 | 2.0ml centrifuge tube | 24 |
custom module | sample tube specifications provided by the customer | —— |
