model:wkb-100-4
brand:jingxin
specifications :set

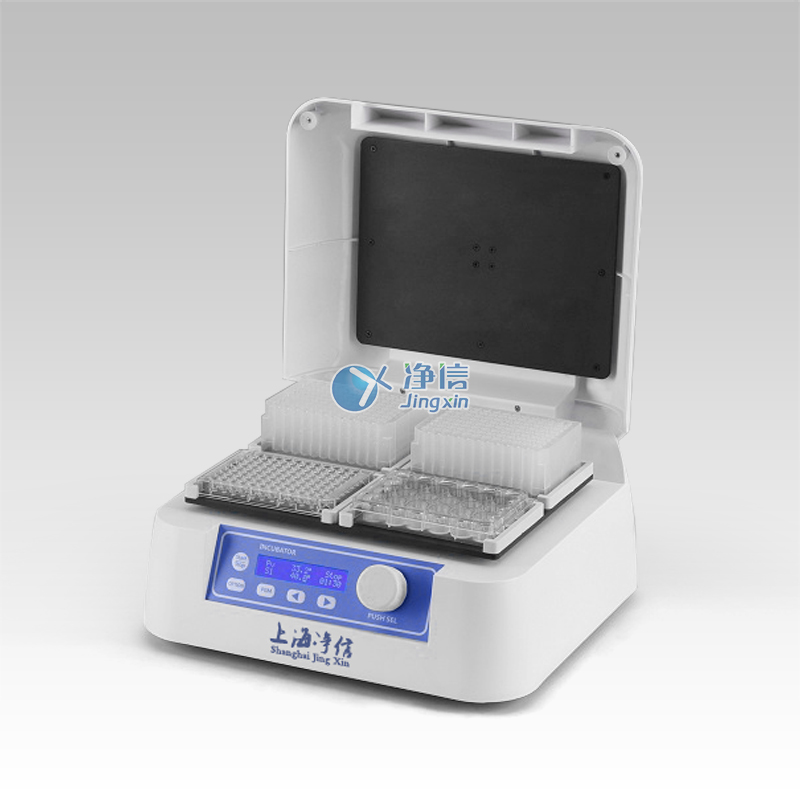

introduction:wkb-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless dc motor and pid intelligent temperature control technology.
product description:
wkb-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless dc motor and pid intelligent temperature control technology. its pid fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time. wkb-100-4 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. it is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage.
features:
◆ simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment.
◆ it can process 4 elisa plates or deep well plates at a time;
◆ adopt hot cover heating technology;
◆ support automatic preheating function;
◆ support automatic recovery function after power failure;
◆ comes with temperature calibration function;
◆using dc brushless motor, low noise, low interference and maintenance-free;
technical parameter:
main parameters | parameter range |
temperature setting range | 0℃~80℃ |
temperature control range | room temperature 5℃~80℃ |
time setting | 1min~99h59min/∞ |
temperature control accuracy | ≤±0.5℃* |
display accuracy | 0.1℃ |
temperature uniformity | ≤±0.5℃* |
heating time | ≤10 minutes (25℃ to 80℃)* |
automatic preheating | support |
range of rotation | 300~1350rpm |
horizontal amplitude | 3mm |
sample capacity | 4 microtiter plates or deep well plates |
automatic recovery after power failure | support |
fuse | 250v 3a ф5x20 |
input power | 300w |
voltage | ac220v/50-60hz |
dimensions (mm) | 340×320×200mm |
weight | 9.5kg |
